FAST CYCLE:  YOUR MOST RELIABLE AND COST EFFECTIVE WAY TO
"BIGGER PROFITS" FOR YOUR ACME-GRIDLEYS

 CUT YOUR CHIP TO CHIP INDEXING IN 1/2

  • .7 SEC ON 9/16" & 1" ACME

  • .8 SEC ON 3/4" RA-8 ACME

  • .9 SEC ON 1 1/4" RA-6 AND 5 1/4" RAC-6

  • 1.2 SEC ON 1 1/4" RB-8 ACME

  • 1.3 SEC ON 1 5/8" RBN-8 ACME

  • 1.5 SEC ON 1 5/8" RB-8 ACME

*INDEX IS QUIETER, SMOOTHER, WITH LESS SHOCK THAN ORIGINAL INDEXING!

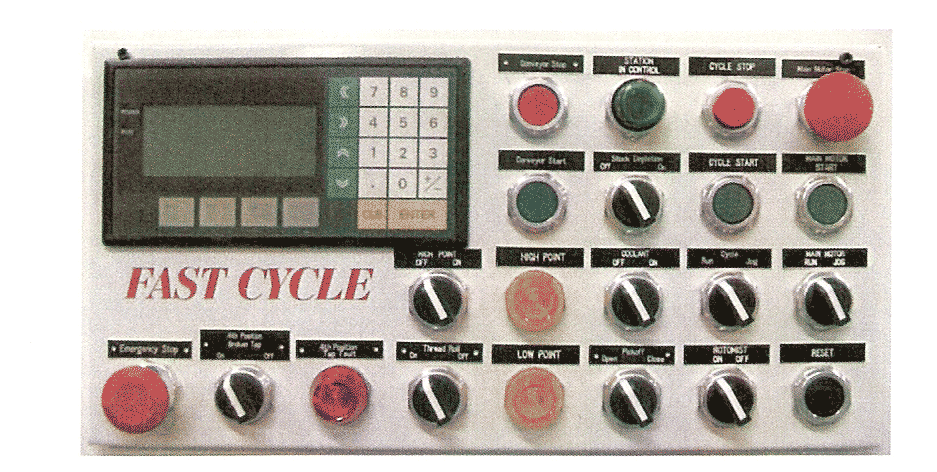

COMPUTER CONTROLLED CYCLES-PROGRAM ON THE FLY BY 360 DEGREE ROTATION

  • TOOLSLIDE STROKE

  • PICK OFF

  • THREAD ROLLING

  • TAP DEPTH

  • HI-LO CLUTCHES & BRAKE SHIFT POINTS

  • TOOLSLIDE BRAKE

  • AUTO STOCK-UP MODE

PRODUCTION AND MACHINE OPERATING MONITORS WITH ISO/QS 9000 REPORTING





Monitor Display

  • Degrees of  rotation

  • Production reporting

  • Down time reporting

  • Actual cycle times

  • Clutch maintainence

  • Tool change counters

  • Part counters

  • Hi & Low point indicators

  • Chip conveyor

  • Mist collector

  • Actual spindle r.p.m.

  • Actual run time

  • All shut down faults



Shut Down and Display

  • Broken tap

  • Short part

  • Broken drill

  • Stock Depletion

  • Presence of I.D. or O.D. thread

  • Fire alarm

  • Machine tie up

  • Knurl diameter

  • Air pressure

  • Hand crank safety

  • Hand chuck safety

  • 1/2 index lockout

  • Lubrication

  • Coolant flow
