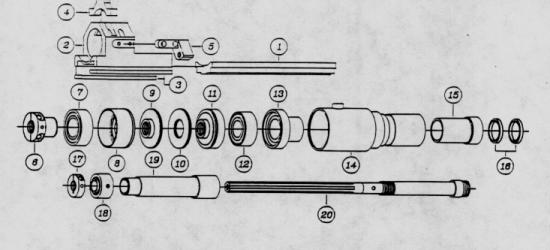

Pickoff Attachment and
Parts
1 1/4" RA6
|
Key |
Part # |
Description |
Pricing |
| |
03022-2 |
Housing Spindle Assembly |
$4750.00 |
| 1 |
02307-14 |
Toolslide Way |
$535.00 |
| 2 |
02307-31 |
Housing |
$985.00 |
| 3 |
02307-32 |
Gib |
$55.00 |
| 4 |
02307-33 |
Clamping Link |
$214.00 |
| 5 |
02307-34 |
Stop Block |
$71.00 |
| 6 |
03022-24 |
Adjusting Nut |
$117.00 |
| 7 |
D-17885 |
Bearing |
$87.00 |
| 8 |
03022-9 |
Bearing Retainer |
$170.00 |
| 9 |
03022-7 |
Seal Ring |
$88.00 |
| 10 |
03022-8 |
Retainer and Ring |
$43.00 |
| 11 |
03022-12 |
Bearing Retainer |
$140.00 |
| 12 |
D-17886 |
Bearing |
$82.00 |
| 13 |
03022-10 |
Bearing Retainer |
$204.00 |
| 14 |
03022-16 |
Housing |
$680.00 |
| 15 |
03022-11 |
Bearing Housing |
$116.00 |
| 16 |
D-17884 |
Bearing |
$80.00 |
| 17 |
XA-612 |
Split Locknut |
$37.00 |
| 18 |
03251-32 |
Air Distributor |
$200.00 |
| 19 |
03022-14 |
Collet Sleeve |
$320.00 |
| 20 |
03022-6 |
Drive Shaft |
$480.00 |
| |
1156 |
SC HD CP Screw |
$0.31 |
| |
02502-22 |
Retaining Ring |
$0.38 |
| |
1188 |
SC HD CP Screw |
$0.31 |
| |
263 |
Hex Jam Nut |
$0.38 |
| |
50543 |
SQ HD ST Screw |
$1.00 |
| |
1151 |
SC HD CP Screw |
$0.31 |
| |
1176 |
SC HD CP Screw |
$0.62 |
| |
1137 |
SC HD CP Screw |
$0.31 |
| |
W-421 |
Washer |
$4.60 |
| |
251048 |
Retaining Ring |
$4.60 |
| |
01829-43 |
O-Ring |
$0.95 |
| |
02508-15 |
Retaining Ring |
$0.97 |
| |
01829-34 |
O-Ring |
$0.92 |
| |
02508-11 |
Retaining Ring |
$1.00 |
| |
1101 |
SC HD CP Screw |
$0.32 |
|
Key |
Part # |
Description |
Pricing |
TO
ORDER:
email:
sales@toolingconnection.com
Or
Call
419-594-3339 and ask
for sales
|
